Introducing the Thor Extension Square
1.
Select your table
3.
Find your position
2.
Extend your plane
4.
Clamp
EXTENSION SQUARE
The following features are unique to the THOR Extension Squares.
The innovative Flag & Groove design ensures perfectly straight assembly and guarantees squareness in all plains.
Select from a variety of different sizes.
LEFT / RIGHT VERSION
When purchasing the Thor Extension Squares in pairs, fit the side with indexed holes on the left side of one Square and right side of the other.
This will expand the versatility of the Extension Square.
PIVOT SLOT
Each Thor Extension Square is provided with a curved Pivot slot which can be used to set the square at any angle when used in a horizontal position on the table surface.
4th PLAIN HOLES
The Thor Extension Squares all come with indexing holes on four different plains.

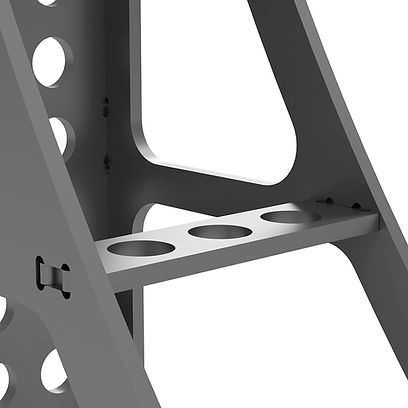

ADDED SUPPORT
The larger Thor Extension Squares are provided with an additional support to ensure a ridged construction under demanding clamping set-ups.
DXF - FREE download
To download the Thor V-Block 50 or 2" DXF file, go to the DXF Download page by clicking on the Product Categories tab or the link above.
Chose either the metric or imperial V-Block and when you view your cart you will find a text box asking for the Promo code.
Enter the code "V-Block-test-sample" for the metric version and "V-Block-test-imp" for the imperial version.
Go to checkout and fill out your details after which you will receive your free DXF file download link.
The downloaded zip files will contain the DXF files as well as a bill of materials and the user instruction explaining how to set up your order with your closest laser cutting service provider.
